Kelly Ryan Forage Baggers

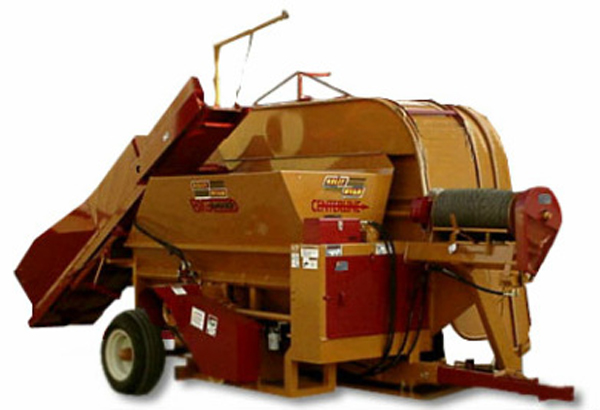

7' Baggers
- Self-cleaning tunnel
- 48" rotor with packing bars with 1" tine caps
- Cable drums to accommodate 150-ft. bag with some double wrap
- 1.5" diameter cable drum shaft
- Mechanically adjustable no-rust chrome brake disc
- 662 conveyor chain
- Hydraulic motor driven cross-conveyor
- American-made RC-160 roller chain drive running in an oil bath
- 2-15/16" bore tapered TIMKEN main drive bearing
- Double endplate prevents silage juice from reaching the main rotor bearing
- New 15" tires

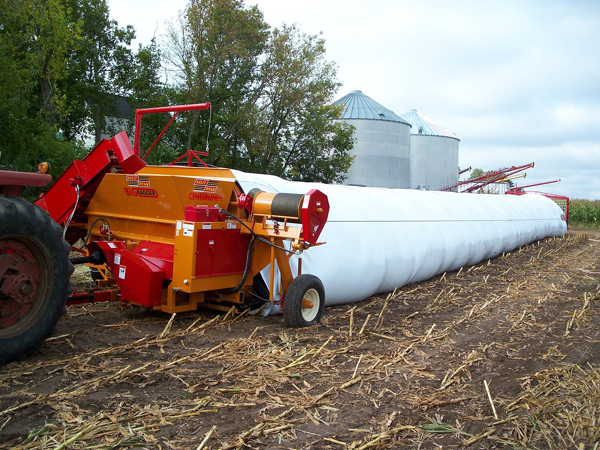

8'-9'-10' Baggers
- Rust-free chrome disc mechanical brake
- Hydraulic brake with hand pump and gauge
- Hydraulic cable rewind
- One-man bag lift
- Self-cleaning tunnel
- Cables single wrap up to 250'
- Hydraulic or mechanical break
- 540 rpm PTO (1000 available)
- Oil bath gearbox and drive chain
- #160 roller chain main rotor drive
- Mechanical or hydraulic driven conveyor
- 1' one-piece tunnel extension
- 72" rotor with 65 packing bars
- Wide bag cradle for large fold bags
- #662 detachable conveyor chain
- Dual mechanical brake calipers

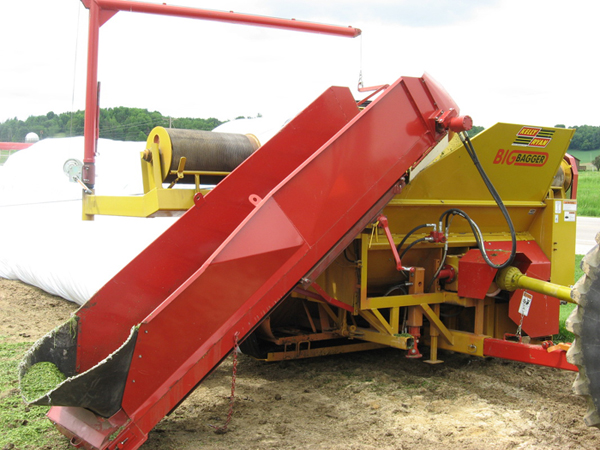

12' Baggers
- 100" rotor with 92 packing bars
- Self-cleaning tunnel
- Cables single wrap up to 250'
- Hydraulic or mechanical break
- 1000 rpm PTO (540 available)
- Oil bath gearbox and drive chain
- #160 Super Precision roller chain main rotor drive (38% stronger than regular #160 chain)
- Hydraulic driven conveyor
- 1' one-piece tunnel extension
- Wide bag cradle for large fold bags
- Hydraulic cable rewind
- Single mechanical brake calipers
- Rust-free chrome disc mechanical brake
- Bondioli 2201 Gearbox - 540 rpm, 1000 rpm PTO

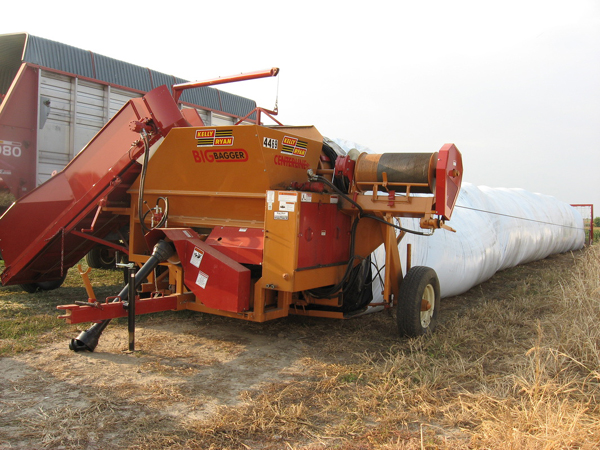

Centerline Pro
- Self-cleaning tunnel
- 14' cable drums with single-wrap cables for up to 200' bag
- 2" diameter cable drum shaft
- American-made RC-160 roller chain main roller drive
- 2 7/16" bore tapered TIMKEN roller bearing on drive and idler end
- Dual mechanical brake calipers
- Bag lift with cradle
- Dual 667C pintle apron chains
- Hydraulic cable rewind
- 2" double endplace
